Seat Leon >> Fitting location overview - air conditioning system

SEAT Leon Service and Repair Manual / Heating and air conditioning / Air conditioning system / Fitting location overview - air conditioning system

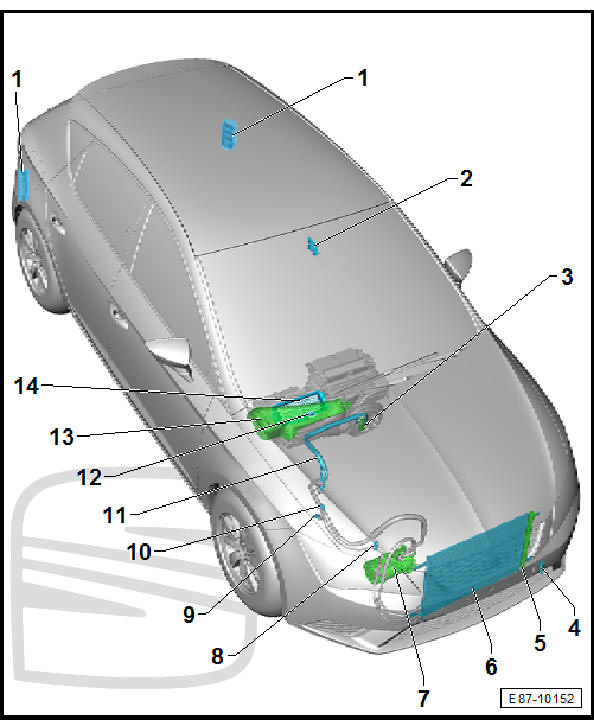

Fitting location overview - components outside of passenger compartment

Air conditioning system

  1. - Exhaust ventilation for passenger compartment
    • Check
    • Removing and fitting
  2. - Air conditioning system humidity sender - G260-
    • Removing and fitting
  3. - Expansion valve
    • Removing and fitting
    • Specified torques
  4. - exterior temperature sensor - G17-
    • Removing and fitting
  5. - Dryer bag
    • Removing and fitting
    • General exploded view
  6. - Condenser
    • General exploded view
    • Removing and fitting
  7. - Air conditioning compressor
    • General exploded view
    • Removing and fitting
    • Removing and installing air conditioning compressor from and to bracket
  8. - Evacuating and charging valve, high-pressure side
    • Removing and fitting
  9. - Pressure sender for refrigerant circuit - G805-
    • 8 Nm
    • Removing and fitting
  10. - Evacuating and charging valve, low-pressure side
    • Removing and fitting
  11. - Refrigerant line with internal heat exchanger
    • Removing and fitting
  12. - Air quality sensor - G238-
    • Removing and fitting
    • Only vehicles with Climatronic.
  13. - Cover for fresh air intake duct
    • Removing and fitting
  14. - Fresh air intake
    • Removing and fitting

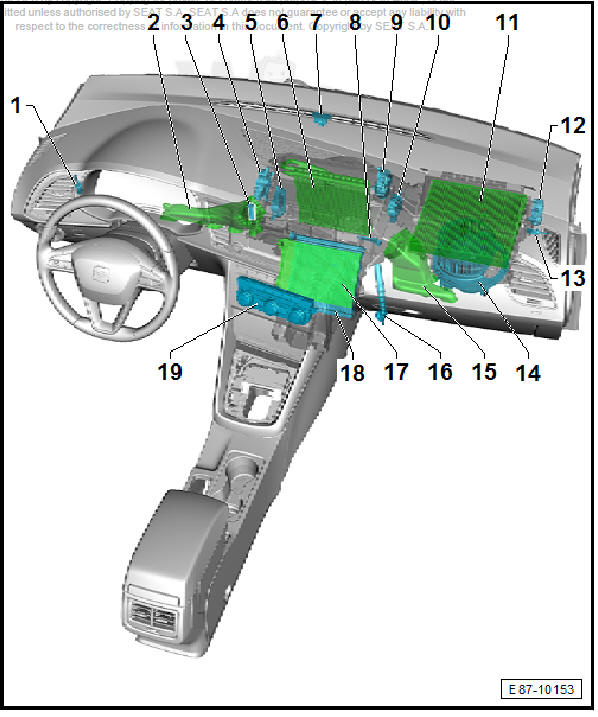

Fitting location overview - components inside of passenger compartment

Air conditioning system

  1. - Air temperature sender, left vent - G150-
    • Only vehicles with Climatronic.
    • Removing and fitting
  2. - Footwell vent driver's side
    • Removing and fitting
    • General exploded view
  3. - Air temperature sender, foot well zone vent - G192-
    • Only vehicles with Climatronic.
    • Removing and fitting
  4. - Front air distribution flap control motor - V426- with air distribution flap control motor - V428-
    • Removing and fitting
    • Overview of fitting locations
  5. - Left temperature flap control motor - V158- or temperature flap control motor - V68-
    • Removing and fitting
    • Overview of fitting locations
  6. - Evaporator
    • Only on vehicles equipped with air conditioning
    • Removing and fitting
  7. - Sunlight penetration photosensor - G107-
    • Only vehicles with Climatronic.
    • Removing and fitting
  8. - Evaporator temperature sensor - G308-
    • Only on vehicles equipped with air conditioning
    • Removing and fitting
  9. - Defroster flap servomotor - V107-
    • Only vehicles with Climatronic.
    • Removing and fitting
    • Overview of fitting locations
  10. - Right temperature flap servomotor - V159-
    • Only vehicles with Climatronic.
    • Removing and fitting
    • Overview of fitting locations
  11. - Dust and pollen filter
    • Removing and fitting
  12. - Air recirculation flap control motor - V113- or fresh air/recirculated air, air flow flap control motor - V425-
    • Removing and installing air recirculation flap servomotor - V113-
    • Removing and installing fresh air/recirculated air, air flow flap servomotor - V425-
    • Overview of fitting locations
  13. - air temperature sender, right vent - G151-
    • Only vehicles with Climatronic.
    • Removing and fitting
  14. - Fresh-air turbine - V2-
    • Removing and fitting
  15. - Footwell vent front passenger side
    • Removing and fitting
    • General exploded view
  16. - Condensation drain hose
    • Only on vehicles with air conditioning system.
    • Checking
    • Removing and fitting
  17. - heater element for additional air heater - Z35- with Additional air heater control unit - J604-
    • Removing and installing
  18. - Heat exchanger
    • Removing and fitting
  19. - Control and display unit
    • Removing and fitting
