Seat Leon >> Servomotors

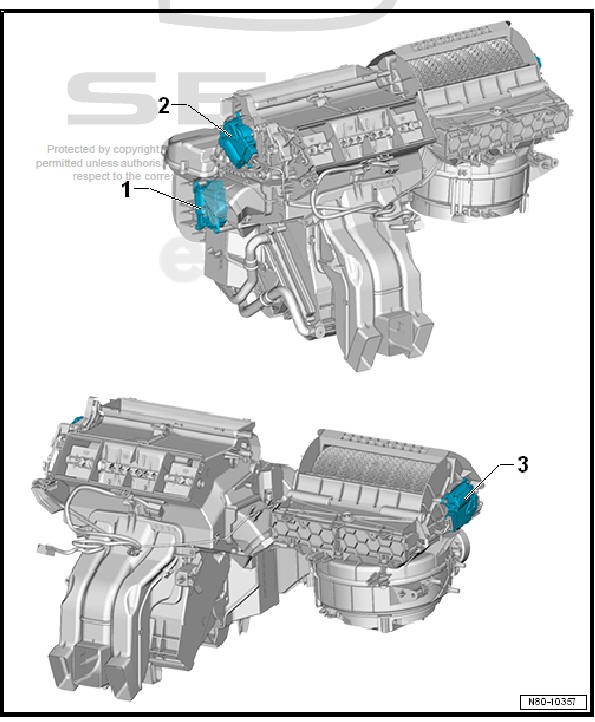

Fitting location overview - front servomotors

Heating

  1. - Servomotor for temperature flap - V68-
    • Removing and fitting
  2. - Air distribution flap servomotor - V428-
    • Removing and fitting
  3. - Servomotor for air recirculation flap - V113-
    • Removing and fitting

Removing and installing temperature flap control motor - V68- with potentiometer - G92-

Removal and installation are identical with procedure for vehicles with air conditioning system.

Removing and installing air recirculation flap control motor - V113-

Removal and installation are identical with procedure for vehicles with air conditioning system.

Removing and installing air distribution flap servomotor - V428-

Removal and installation are identical with procedure for vehicles with air conditioning system.

Air deflector

Assembly overview - air duct and air distribution in passenger compartment

The passenger compartment air routing and air distribution exploded view is the same as for vehicles with a manually controlled air conditioner.

Removing and installing exhaust ventilation for passenger compartment

Removal and installation are identical with procedure for vehicles with air conditioning system.

Checking exhaust ventilation for passenger compartment

Removal and installation are identical with procedure for vehicles with air conditioning system.

Removing and installing fresh air intake

Removal and installation are identical with procedure for vehicles with air conditioning system.

Checking plenum chamber water drain

Checking is the same as for a vehicle with air conditioner.

Control and display unit

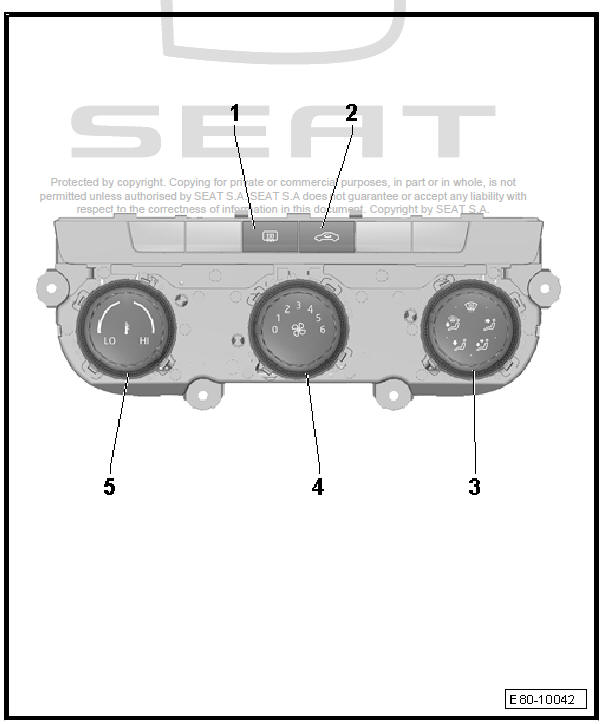

Overview of fitting locations - operating and display unit

Heating

  1. - Heated rear window button
  2. - Air recirculation button
  3. - Rotary control for setting air distribution
  4. - Rotary control for fresh air blower - V2-
  5. - Rotary temperature control

Removing and installing control and display unit

Removal and installation are identical with procedure for vehicles with air conditioning system.

Other control components

Removing and installing ambient temperature sensor - G17-

Removal and installation are identical with procedure for vehicles with air conditioning system.

    Heater unit
    Assembly overview - heater unit Note There are different designs and makes of heater. The individual components of the various heaters are similar but not identical. The combined fitting of d ...
