Seat Leon >> Fitting location overview - heating

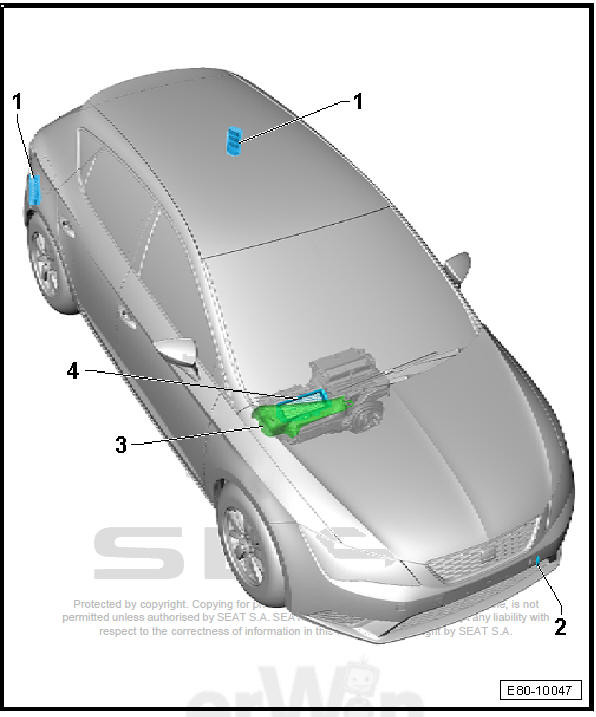

Fitting location overview - components outside of passenger compartment

Heating

  1. - Exhaust ventilation for passenger compartment
    • Check
    • Removing and fitting
  2. - exterior temperature sensor - G17-
    • Removing and fitting
  3. - Fresh air intake cover
    • Removing and fitting
  4. - Fresh air intake
    • Removing and fitting

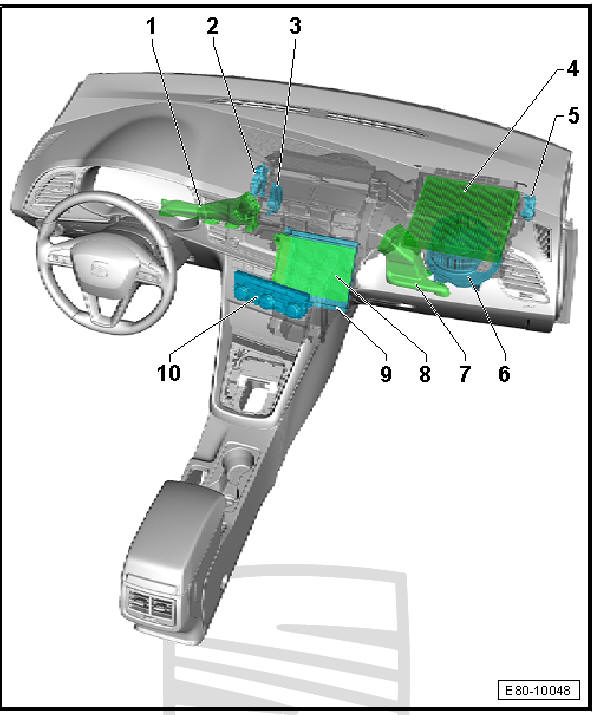

Fitting location overview - components inside of passenger compartment

Heating

  1. - Footwell vent driver's side
    • Removing and fitting
    • General exploded view
  2. - Servomotor for temperature flap - V68-
    • Removing and fitting
  3. - Air distribution flap servomotor - V428-
    • Removing and fitting
  4. - Dust and pollen filter
    • Removing and fitting
  5. - Servomotor for air recirculation flap - V113-
    • Removing and fitting
  6. - Fresh-air turbine - V2-
    • Removing and fitting
  7. - Footwell vent front passenger side
    • Removing and fitting
    • General exploded view
  8. - heater element for additional air heater - Z35- with Additional air heater control unit - J604-
    • Removing and fitting
  9. - Heat exchanger
    • Removing and fitting
  10. - Control and display unit
    • Removing and fitting
    Heating
    ...

    Heater unit
    Assembly overview - heater unit Note There are different designs and makes of heater. The individual components of the various heaters are similar but not identical. The combined fitting of d ...
