Seat Leon >> Layout - telephone

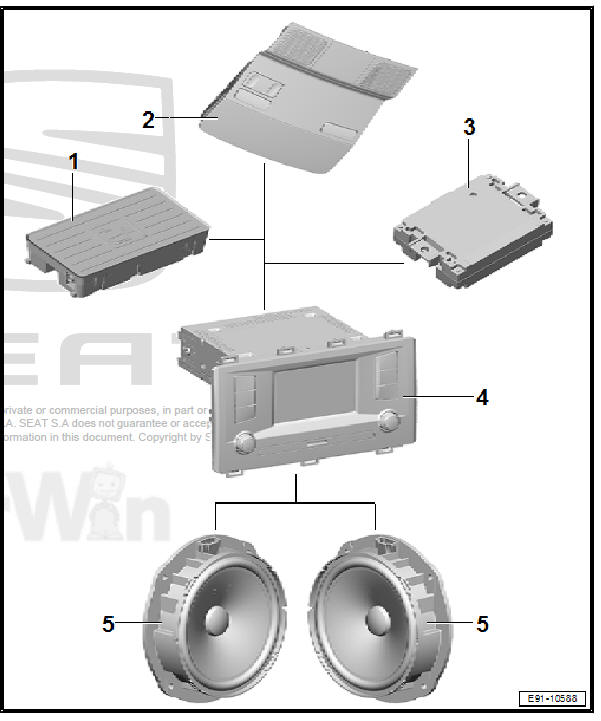

Structure - Telephone, versions without control unit 1 for information electronics - J794-

Communication

  1. - Mobile charging cradle - R265-
    • Removal and installation
  2. - Telephone microphone - R38-
    • Assembly overview
    • Removal and installation
  3. - Control unit for stabilising the transmission and reception quality - R308-
    • Removal and installation
  4. - Control unit with display for radio and navigation - J503-
    • Removal and installation
  5. - Sound system
    • Removal and installation

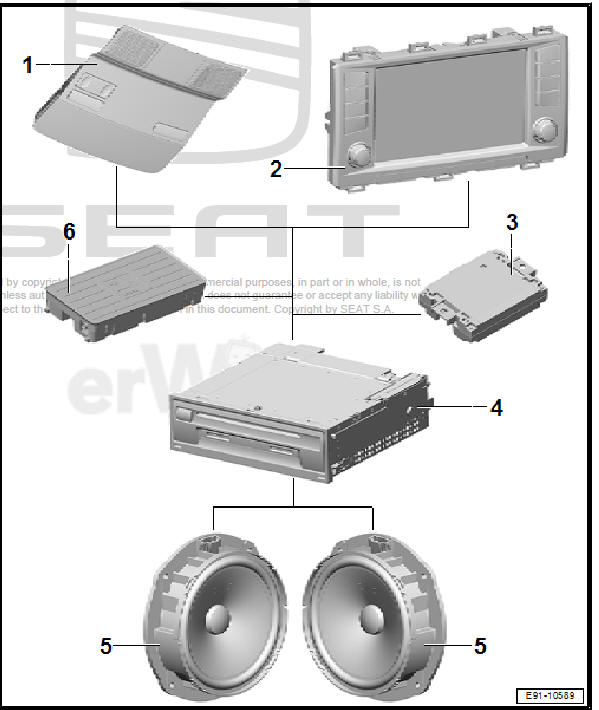

Structure - Telephone, versions with control unit 1 for information electronics - J794-

Communication

  1. - Telephone microphone - R38-
    • Assembly overview
    • Removal and installation
  2. - Display unit for front information display and operating unit control unit - J685-
    • Removal and installation
  3. - Control unit for stabilising the transmission and reception quality - R308-
    • Removal and installation
  4. - Control unit 1 for information electronics - J794-
    • Removal and installation
  5. - Sound system
    • Removal and installation
  6. - Mobile charging cradle - R265-
    • Removal and installation
