Seat Leon >> Front camera for assist systems

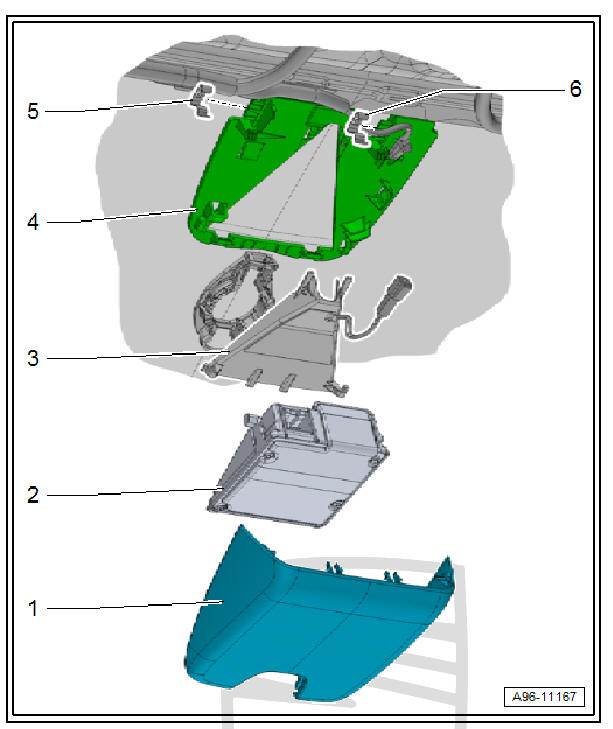

Assembly overview - Front camera for assist systems

Lights, bulbs, switches - interior

  1. - Cover
  2. - Front camera for driver assist systems - R242-
    • Removal and installation
  3. - Lens Hood
    • With pane heating
    • Removal and installation
  4. - Retainer
    • Cannot be separated from the windscreen
  5. - Retention clip
    • Only replace in the event of damage
  6. - Retention clip
    • Only replace in the event of damage

Removing and installing front camera for driver assist systems

Special tools and workshop equipment required

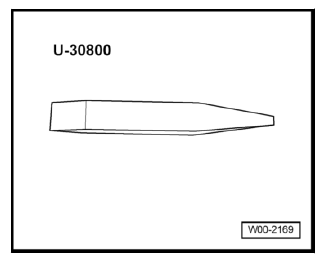

  • Lever - U30800-

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

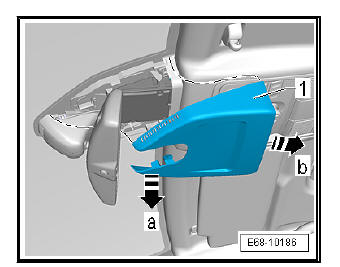

  • Cover -1- of the front camera support is pushed downward -Arrow A- unclip and remove -Arrow B- .

Lights, bulbs, switches - interior

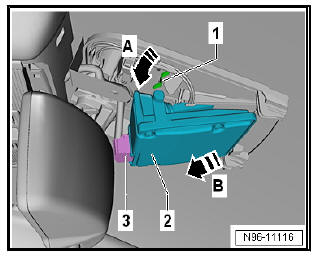

  • Push clip -1- on the right side of the front camera for driver assist system - R242- up and at the same time push back in -arrow direction B- .
  • Turn the camera to the right until it is completely disconnected.
  • Pull out the plug -3-.

Removing lens hood

Lights, bulbs, switches - interior

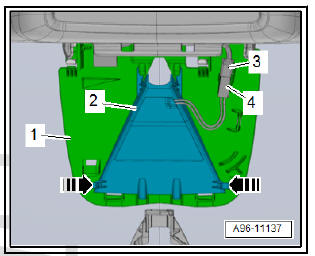

  • Unplug electrical connectors -4- and -3-.
  • Press the retention clips in the -arrow direction- and remove the lens hood -2- from the holder -1- downward.

Installing

Installation is carried out in the reverse sequence; note the following:

Lights, bulbs, switches - interior

Note The field of vision of the camera may not be damaged or dirty on the inside of the glass.

If the retention clips are deformed, replace them.

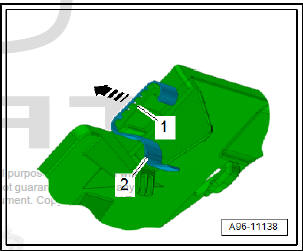

  • Remove the retention clip -2- from the holder -1- in -the direction of the arrow- and replace with a new one.
  • The field of vision of the windscreen must be cleaned with cleaning solution - D 009 401 04- .
  • Calibrate the front camera for the driver assist system .
