Seat Leon >> Assembly overview - towing bracket socket
SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - exterior / Towing bracket / Assembly overview - towing bracket
socket

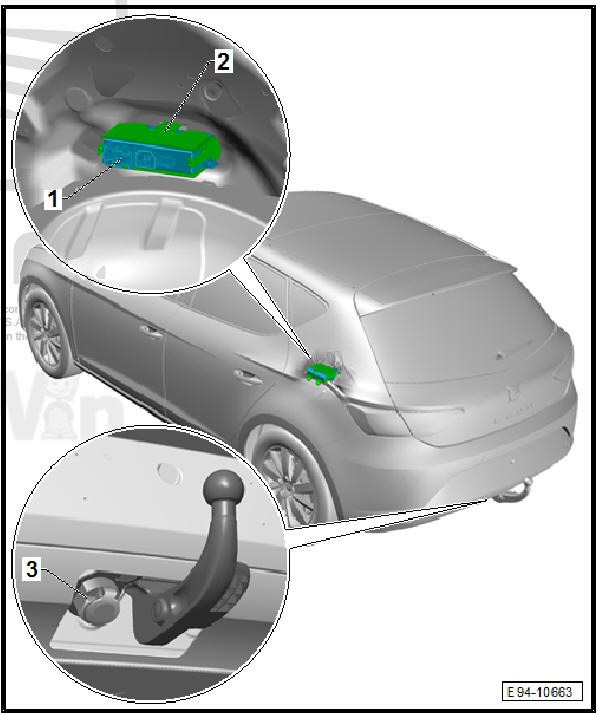

Assembly overview - Socket for trailer hitch, Leon / Leon SC
- - Control unit for trailer detection
- J345- .
- Removal and installation.
- - Bracket/bearing/support
- For fastening the control unit for trailer detection - J345- .
- - Trailer socket - U10- .
- The exact pin assignment can be found in the current flow diagram

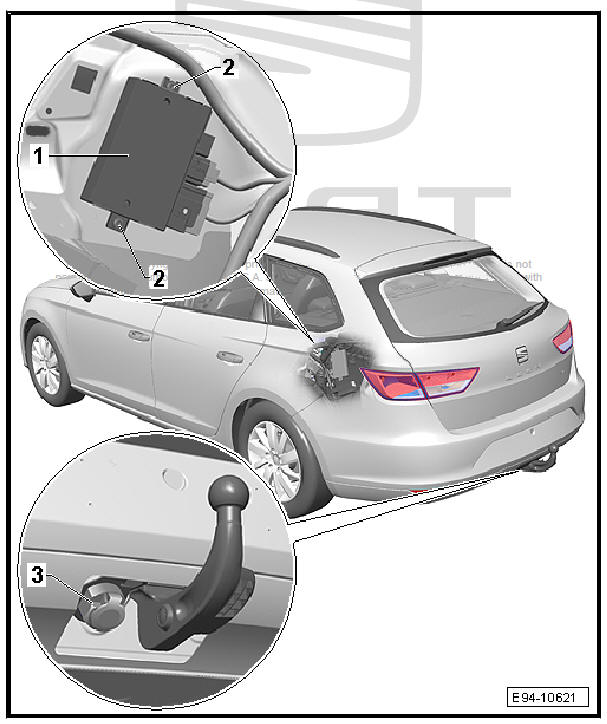

Assembly overview - Socket for trailer hitch, Leon ST
- - Control unit for trailer detection
- J345- .
- Removal and installation.
- - Press rivet
- For fastening the control unit for trailer detection - J345- .
- - Trailer socket - U10-
- The exact pin assignment can be found in the current flow diagram
