Seat Leon >> Number plate light

Installing and removing number plate light X4 / X5

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove the indicator lights -1- out of the bumper from behind by unlocking the retaining tab -arrow-.

Lights, bulbs, switches - exterior

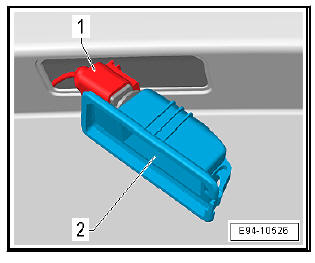

  • Release and separate the plug connector -1- and then remove the lamp holder from the number plate light -2-.

Lights, bulbs, switches - exterior

Installing

Installation is carried out in the reverse sequence; note the following:

Note

  • Insert number plate light into bumper cover so that connector is oriented to left side of vehicle.
  • Engage the indicator light in the bumper mount in a safe manner.



  • Check function of number plate light.

Installing and removing number plate light X4 / X5, LED

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove the indicator lights -1- out of the bumper from behind by unlocking the retaining tab -arrow-.

Lights, bulbs, switches - exterior

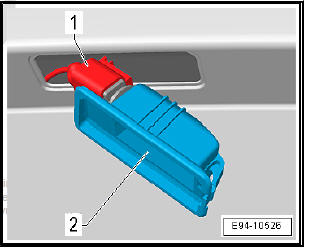

  • Release and separate the plug connector -1- and then remove the lamp holder from the number plate light -2-.

Lights, bulbs, switches - exterior

Installing

Installation is carried out in the reverse sequence; note the following:

Note If the LED is defective, the number plate light must be completely renewed.

Installing and removing number plate light bulb X4 / X5

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove the number plate light out of the latching in the bumper.

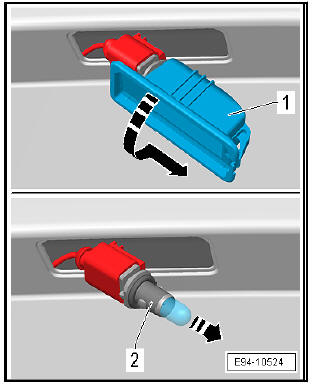

  • Turn lamp holder -1- in the direction of the -arrow-.
  • Take out the bulb holder -1-.
  • Hold the bulb holder -2- in your hand and remove the bulb in the direction of the -arrow-.

Installing

Installation is carried out in reverse order.

Lights, bulbs, switches - exterior
