Seat Leon >> Removing and installing turn signal bulb

Installing and removing turn signal bulbs, Leon / Leon SC

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Removing the rear light.

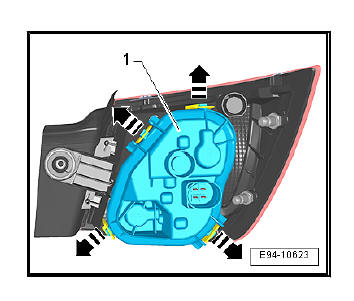

  • Take bulb holder -1- out of housing by pressing retainers in direction of -arrow-.

Lights, bulbs, switches - exterior

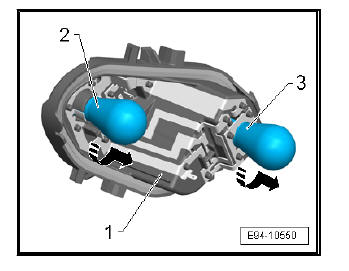

  • Remove the front left indicator bulb - M6- or front right indicator bulb - M8- -2- from the lamp frame -1-.
  • Take out the bulb for the brake light -3- from the bulb holder -1-.

Lights, bulbs, switches - exterior

Installing

Installation is carried out in the reverse sequence; note the following:

  • Fit new bulbs in bulb holder; do not touch the glass part of the bulb with bare hands.

Removing and installing turn signal bulb, Leon ST

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Removing the rear light.
  • Take bulb holder -1- out of housing by pressing retainers in direction of -arrow-.

Lights, bulbs, switches - exterior

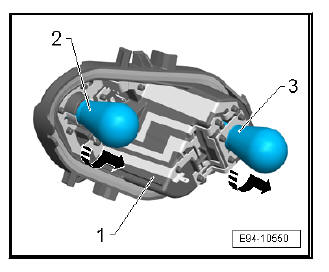

  • Remove the front left indicator bulb - M6- or front right indicator bulb - M8- -2- from the lamp frame -1-.
  • Take out the bulb for the brake light -3- from the bulb holder -1-.

Lights, bulbs, switches - exterior

Installing

Installation is carried out in the reverse sequence; note the following:

  • Fit new bulbs in bulb holder; do not touch the glass part of the bulb with bare hands.

Installing and removing turn signal bulbs, Leon / Leon SC, LED

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Removing the rear light.
  • Remove the bulb frame from the rear light.
Caution

Do not apply excessive force to the bulb holder in order not to overheat the wires of the LED module.

Note The plug connector of the LED module is similar to the lamp holder.

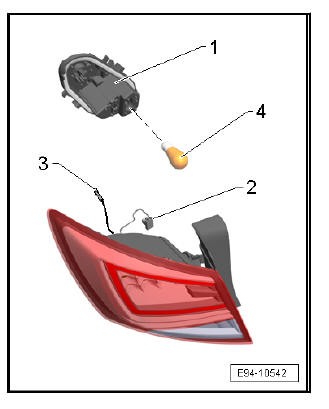

  • Remove the front left indicator bulb - M6- or front right indicator bulb - M8- -4- from the lamp frame -1-.
  • Disconnect connectors -2- and -3- (LED module) from the bulb holder -1-.

Lights, bulbs, switches - exterior

Installing

Installation is carried out in the reverse sequence; note the following:

  • Fit new bulbs in bulb holder; do not touch the glass part of the bulb with bare hands.
  • Plug in the LED module plug.
  • Route the wiring harness of the LED module to its fitting position without interruptions.

Removing and installing turn signal bulb, Leon ST, LED

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Removing the rear light.
  • Remove the bulb frame from the rear light.
Caution

Do not apply excessive force to the bulb holder in order not to overheat the wires of the LED module.

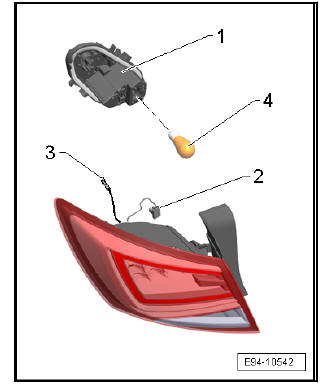

  • Remove the front left indicator bulb - M6- or front right indicator bulb - M8- -4- from the lamp frame -1-.
  • Disconnect connectors -2- and -3- (LED module) from the bulb holder -1-.

Lights, bulbs, switches - exterior

Installing

Installation is carried out in the reverse sequence; note the following:

  • Fit new bulbs in bulb holder; do not touch the glass part of the bulb with bare hands.
  • Plug in the LED module plug.
  • Route the wiring harness of the LED module to its fitting position without interruptions.
