Seat Leon >> Removing and installing tail light

Installing and removing tail lights, Leon / Leon SC

Special tools and workshop equipment required

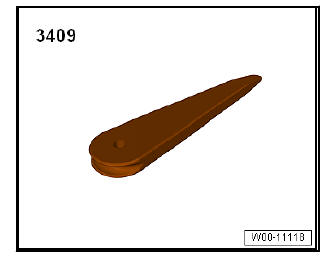

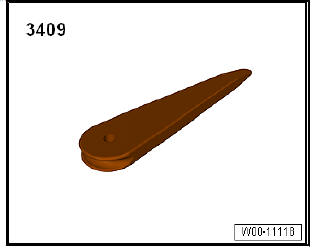

  • Lever - 3409-

Lights, bulbs, switches - exterior

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Open the boot and the side mount -1- in the trim.

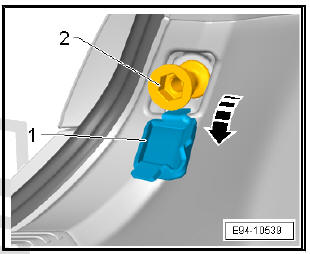

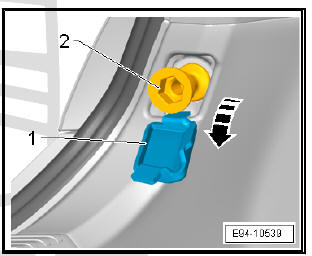

  • Undo the securing handle -2-.

Lights, bulbs, switches - exterior

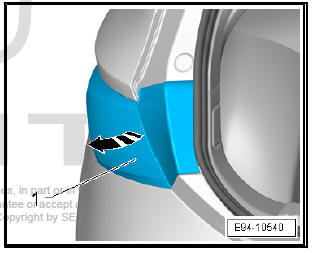

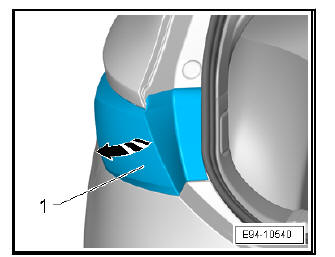

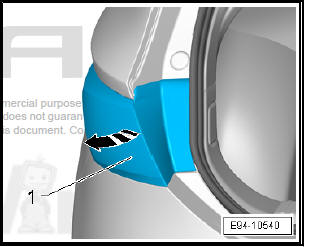

  • Swing the tail gate -1- outwards -arrow-.

Lights, bulbs, switches - exterior

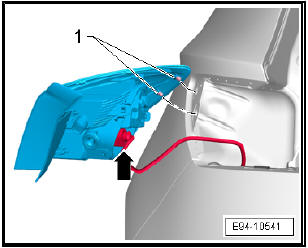

  • Use the lever - 3409- to unhook the bolts -1- for fastening onto the body.

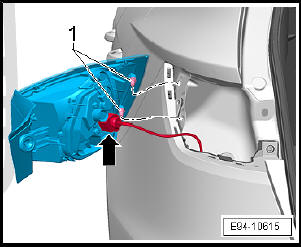

  • Remove the electrical connector -arrow-.

Lights, bulbs, switches - exterior

Installing

Installation is carried out in the reverse sequence; note the following:

  • First secure exterior bolts, checking clearances between sides of optical group and body.
  • Ensure contact of the edges of the casing with the bodywork.

Specified torques

Lights, bulbs, switches - exterior

Remove and install tail lights, Leon ST

Special tools and workshop equipment required

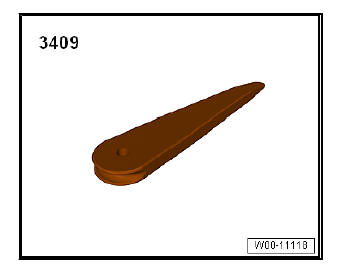

  • Lever - 3409-

Lights, bulbs, switches - exterior

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Open luggage compartment.
  • Open the side holder -1- in the trim.

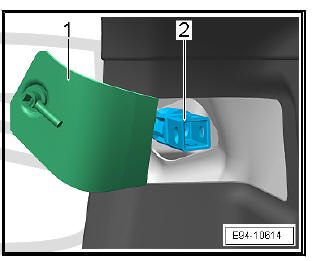

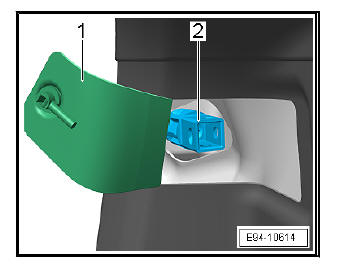

  • Undo the securing handle -2-.

Lights, bulbs, switches - exterior

  • Swing the tail gate -1- outwards -arrow-.

Lights, bulbs, switches - exterior

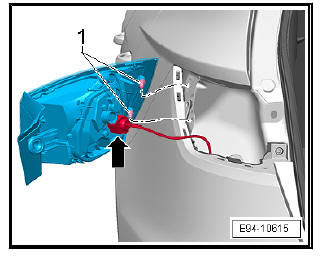

  • Use the lever - 3409- to unhook the bolts -1- for fastening onto the body.

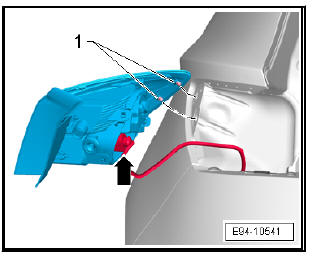

  • Remove the electrical connector -arrow-.

Lights, bulbs, switches - exterior

Installing

Installation is carried out in the reverse sequence; note the following:

  • First secure exterior bolts, checking clearances between sides of optical group and body.
  • Ensure contact of the edges of the casing with the bodywork.

Specified torques

Lights, bulbs, switches - exterior

Installing and removing tail lights, Leon / Leon SC, LED

Special tools and workshop equipment required

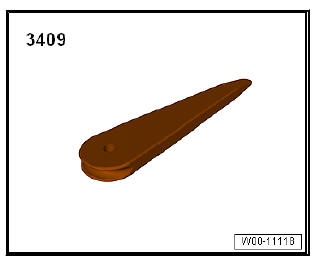

  • Lever - 3409-

Lights, bulbs, switches - exterior

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Open the boot and the side mount -1- in the trim.
  • Undo the securing handle -2-.

Lights, bulbs, switches - exterior

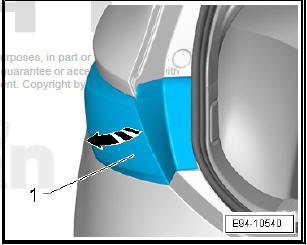

  • Swing the tail gate -1- outwards -arrow-.

Lights, bulbs, switches - exterior

  • Use the lever - 3409- to unhook the bolts -1- for fastening onto the body.
  • Remove the electrical connector -arrow-.

Lights, bulbs, switches - exterior

Installing

Installation is carried out in the reverse sequence; note the following:

  • First secure exterior bolts, checking clearances between sides of optical group and body.
  • Ensure contact of the edges of the casing with the bodywork.

Specified torques

Lights, bulbs, switches - exterior

Remove and install tail lights, Leon ST, LED

Special tools and workshop equipment required

  • Lever - 3409-

Lights, bulbs, switches - exterior

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Open luggage compartment.
  • Open the side holder -1- in the trim.
  • Undo the securing handle -2-.

Lights, bulbs, switches - exterior

  • Swing the tail gate -1- outwards -arrow-.

Lights, bulbs, switches - exterior

  • Use the lever - 3409- to unhook the bolts -1- for fastening onto the body.
  • Remove the electrical connector -arrow-.

Lights, bulbs, switches - exterior

Installing

Installation is carried out in the reverse sequence; note the following:

  • First secure exterior bolts, checking clearances between sides of optical group and body.
  • Ensure contact of the edges of the casing with the bodywork.

Specified torques

Lights, bulbs, switches - exterior
