Seat Leon >> Removing and installing fog light bulb L22 / L23

Removing and installing fog light bulb L22 / L23

Note

  • Do not touch the halogen bulb glass when installing it.
  • The lamp holder is part of the halogen lamp.

Removing

  • Disconnect ignition and all electrical loads, and remove ignition key.
  • Remove fog light.

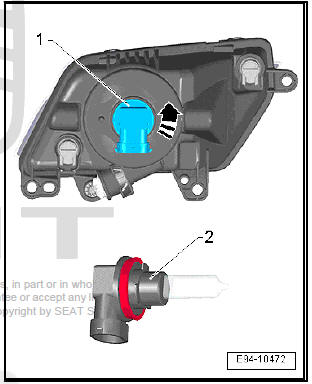

  • Turn the lamp holder -1- 45º anticlockwise -arrow-.
  • Remove lamp -2- from the housing of the fog lamp.

Installing

Install in reverse order for the removal. During this step, observe the following:

  • Place the lamp so that the recess of the lamp holder matches up with the lug of the housing.
  • Check fog light adjustment

Lights, bulbs, switches - exterior

Installing and removing the left fog light bulb - L22- FR fog light

Note

  • Do not touch the halogen bulb glass when installing it.
  • The lamp holder is part of the halogen lamp.

Removing

  • Disconnect ignition and all electrical loads, and remove ignition key.
  • Remove bumper cover (front) .
  • Disconnect the headlight cleaning line.
  • Separate the fog lamp connector.
Caution

Take care when pressing the retaining tags of the safety lock, these may break easily.

Lights, bulbs, switches - exterior

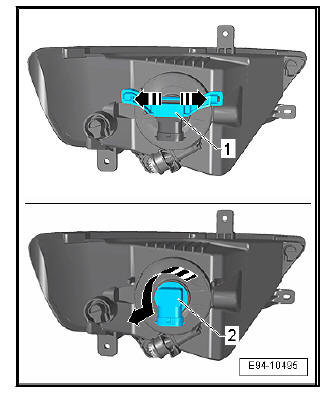

  • Using a narrow screwdriver, press the safety catch -1- through the opening -arrow-.
  • Remove the safety catch -1-.
  • Turn the lamp holder -2- counterclockwise -arrow-.
  • Remove lamp -2- from the housing of the fog lamp.

Installing

Install in reverse order for the removal. During this step, observe the following:

  • Place the lamp so that the recess of the lamp holder matches up with the lug of the housing.
  • Check fog light adjustment

Installing and removing the right fog light bulb - L23- FR fog light

Note

  • Do not touch the halogen bulb glass when installing it.
  • The lamp holder is part of the halogen lamp.

Removing

  • Remove the lower engine noise insulation.
  • Pull connector from bulb holder.

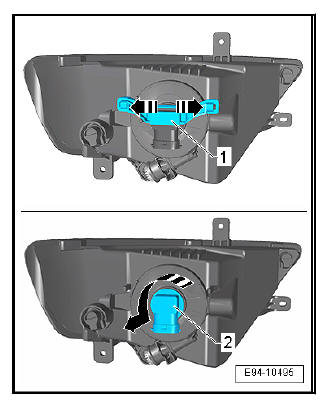

  • Using a narrow screwdriver, press the safety catch through the opening.
  • Turn the lamp holder counter-clockwise.
  • Remove the lamp from the fog lamp housing.

Lights, bulbs, switches - exterior

Installing

Install in reverse order for the removal. During this step, observe the following:

  • Place the lamp so that the recess of the lamp holder matches up with the lug of the housing.
  • Check fog light adjustment

Adjusting fog lights

Adjusting fog lights

  • The conditions for checking and adjustment are the same as for the main headlamps.

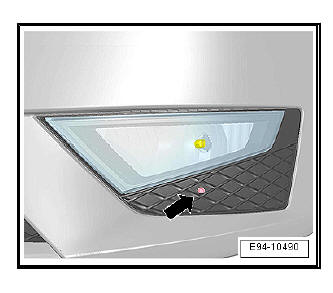

  • Regulate the reach of the headlamps, turning the alignment screw -arrow- with a screwdriver.

Tilt measurement: -1 % + -0.2

Adjusting the fog lights, FR headlights

  • The conditions for checking and adjustment are the same as for the main headlamps.

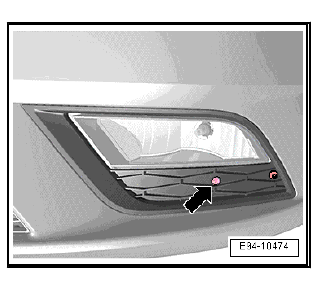

  • Regulate the reach of the headlamps, turning the alignment screw -arrow- with a screwdriver.

Tilt measurement: -1 % + -0.2
