Installing and removing the power module for headlight J667 / J668, left side

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove headlight .

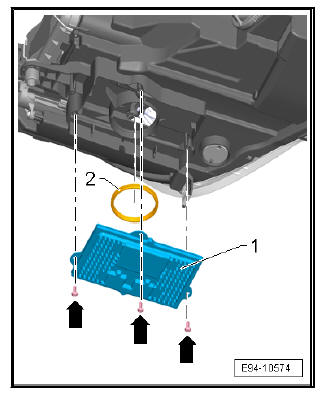

  • Unscrew bolts -arrows-.
  • Detach control unit -1- from headlight.

Installing

Installation is carried out in the reverse sequence; note the following:

  • Check the seal between the control unit and the headlight for damage.

Specified torques

  • Bolt tightening torque 1.5 Nm

Lights, bulbs, switches - exterior

Installing and removing the power module for headlight J667 / J668, right side

Removing

  • Remove the lower engine noise insulation .

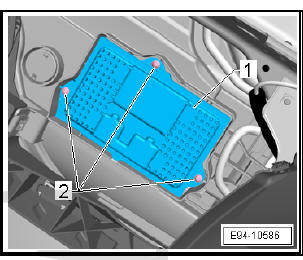

  • Remove bolts -2-.
  • Detach control unit -1- from headlight.

Installing

  • Installation is carried out in the reverse sequence; note the following:
  • Check the seal between the control unit and the headlight for damage.

Specified torques

  • Bolt tightening torque 1.5 Nm

Lights, bulbs, switches - exterior

Removing and installing left LED module for daytime driving light and side light - L176- / right LED module for daytime driving light and side light - L177-

Note The illustrations show the replacement of the left LED module for daylight driving light and side light - L176- of the left headlight.

The replacement of the right LED module for daylight driving light and side light - L177- of the right headlight follows the same procedure.

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

Remove left headlight.

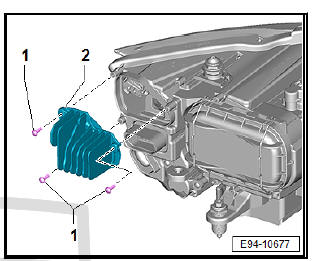

Remove the three securing bolts -1- of the left LED module for daylight driving light and side light - L176- .

  • Pull the left LED module for daylight driving light and side light - L176- -2- out of the headlight.

Installing

Installation is carried out in the reverse sequence; note the following:

  • Check the seal between the control unit and the headlight for damage.

Specified torques

  • Bolt tightening torque 1.5 Nm

Lights, bulbs, switches - exterior

    Removing and installing parking light bulb M1 / M3
    Note The illustrations show the change of bulb for daytime running lights and parking light on the left headlight. The change of the bulb for daytime running light and parking light on the rig ...
