Seat Leon >> Assembly overview - headlight

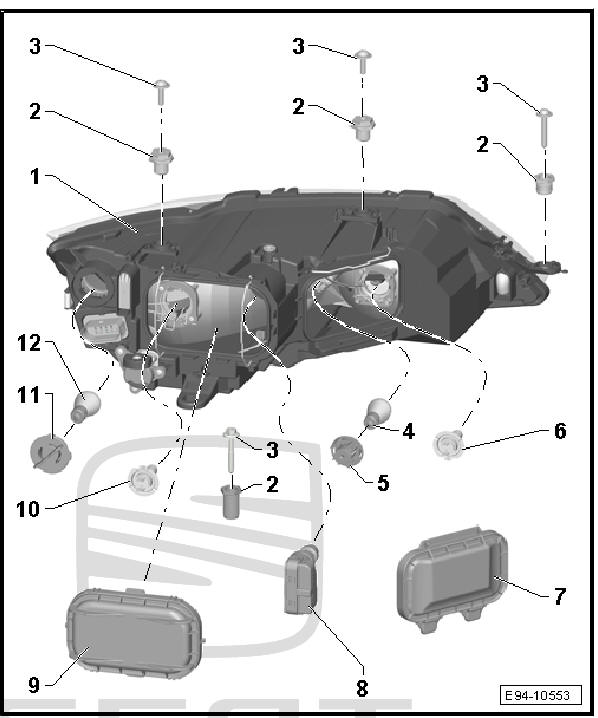

Assembly overview - headlight, halogen headlight

Lights, bulbs, switches - exterior

  1. - Headlamps
    • Removal and installation
    • Correcting installation position of headlight
    • Headlights: Adjust
    • Headlights: checking adjustment
  2. - Adjustment nut
    • 4 Pieces
    • Correcting installation position of headlight
  3. - Bolts
    • 4 Pieces
    • 4.5 Nm
  4. - Front left turn signal bulb - M5- or front right turn signal bulb - M7-
    • Replace
  5. - Flasher light lamp holder
  6. - Left-hand main beam headlamp - M30- or the right-hand main beam headlamp - M32-
    • Replace
  7. - Rear cover for the main beam / indicator
  8. - Left headlight range control motor - V48- or right headlight range control motor - V49-
    • Removal and installation
  9. - Rear cover for the dipped beam
  10. - Bulb for left dipped beam - M29- or bulb for right dipped beam - M31-
    • Replace
  11. - Lamp holder for the daytime running light / side light
  12. - Left bulb for daytime running lights and parking lights - L186- and right bulb for daytime running lights and parking lights - L188-
    • Replace

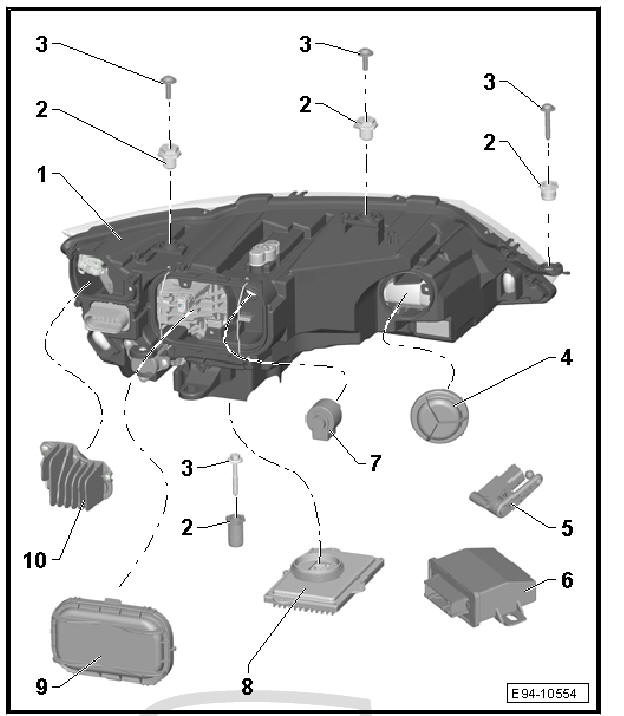

Assembly overview - Headlights, Full-LED headlights

Lights, bulbs, switches - exterior

  1. - Headlamps
    • Removal and installation
    • Correcting installation position of headlight
    • Headlights: Adjust
    • LED headlight: check setting
  2. - Adjustment nut
    • 4 Pieces
    • Correcting installation position of headlight
  3. - Securing screws
    • 4 Pieces
    • 4.5 Nm
  4. - Cover the main beam bulb
  5. - Vehicle level sender
    • Removal and installation
  6. - Headlight range control unit - J431-
    • Removal and installation
  7. - Left headlight range control motor - V48- or right headlight range control motor - V49-
    • Removal and installation
  8. - Output module for left headlight - J667- or output module for right headlight - J668-
    • Removal and installation
  9. - Cover for dipped beam bulb
  10. - Left LED module for daytime running lights and side light - L176- or right LED module for daytime running lights and side light - L177-
    • Removal and installation

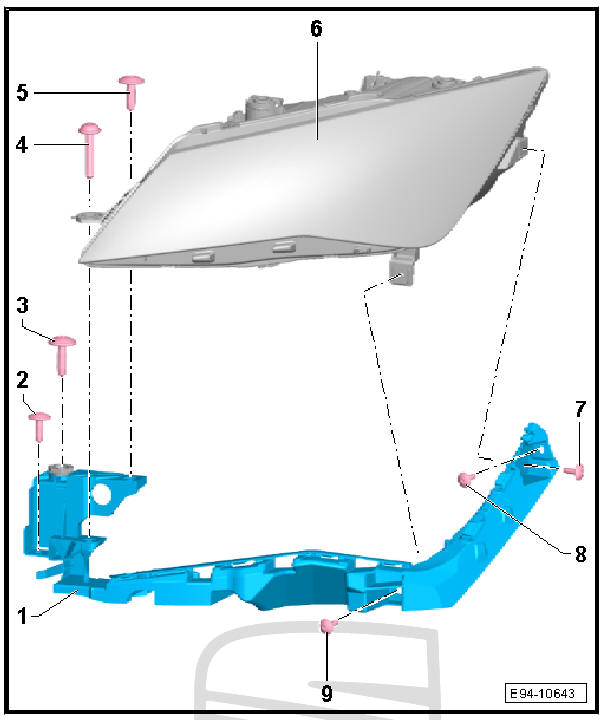

Assembly overview - headlight, headlight track

Lights, bulbs, switches - exterior

  1. - Headlight track under headlight
  2. - Screw
    • 2 Nm
  3. - Screw
    • 4.5 Nm
  4. - Screw
    • 4.5 Nm
  5. - Screw
    • 4.5 Nm
  6. - Headlamps
    • Removal and installation
  7. - Screw
    • 2 Nm
  8. - Screw
    • 2 Nm
  9. - Screw
    • 4 Nm
    Headlamps
    ...

    Removing and installing headlight
    Headlights: removing and installing, left headlight Note Removal and installation are described for the left side. Removal and installation on the right side are carried out laterally reversed in ...
