Seat Leon >> Removing and installing spray jets

Special tools and workshop equipment required

  • Rear shelf - T20173-

Windscreen wash/wipe system

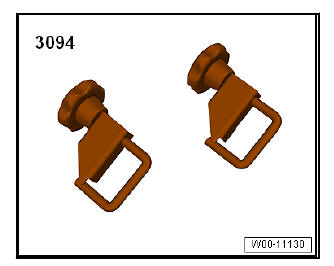

  • Hose clamps, up to √Ш 25 mm - 3094-

Windscreen wash/wipe system

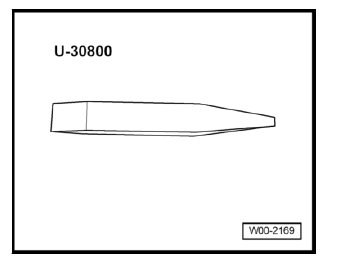

  • Lever - U30800-

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

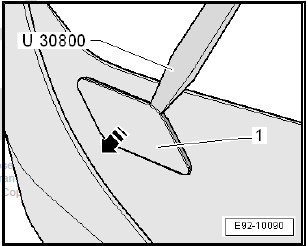

Pull off the protector trim -1- of the spray nozzle with the lever - U 30800- in -direction of arrow-.

Caution

When firmly holding the elevation cylinder, ensure you do not damage it.

Hold the elevation cylinder with pliers.

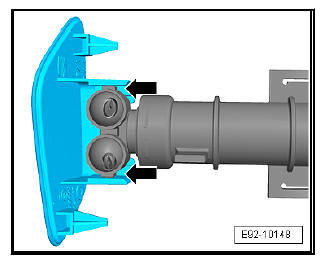

  • Unclip the release tabs -arrows- and remove the protector trim of the spray nozzle.

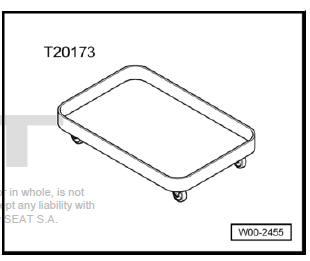

  • Place the drip tray for fluids - T20173- under the vehicle.
  • Disconnect the supply hoses for washer fluid of the front windscreen washer system with the hose clamps up to 25 mm - 3094- .
  • Remove front bumper cover.

Windscreen wash/wipe system

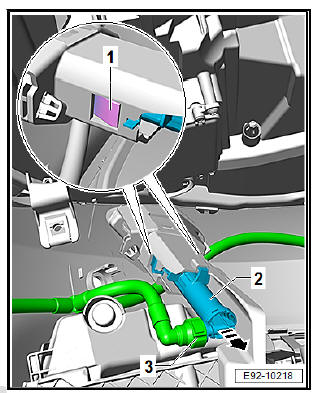

  • Unlock hose connection -3- and pull off the spray nozzle -2-.
  • Press on the two retaining clips -1- and pull out the spray nozzle -2- in -direction of arrow-.

Installing

  • Install in reverse order.

Windscreen wash/wipe system

Jet adjustment

WARNING
  •  Never clean the nozzles using any objects.
  •  To install the conducts, do not use a needle or similar object under any circumstances, as it could damage the jet water conduct!

Note

  • The spray jets are pre-set at the factory and do not have to be adjusted following installation.
  • If necessary, the jets must be adjusted.

Washer fluid hoses

Repairing washer fluid lines

Note All instructions and references for this chapter are found under.

    Removing and installing headlight washer system V11 pump
    Installing and removing the headlight washer system V11 pump, vehicles without additional left cooler Special tools and workshop equipment required Rear shelf - T20173- Removing Place ...
